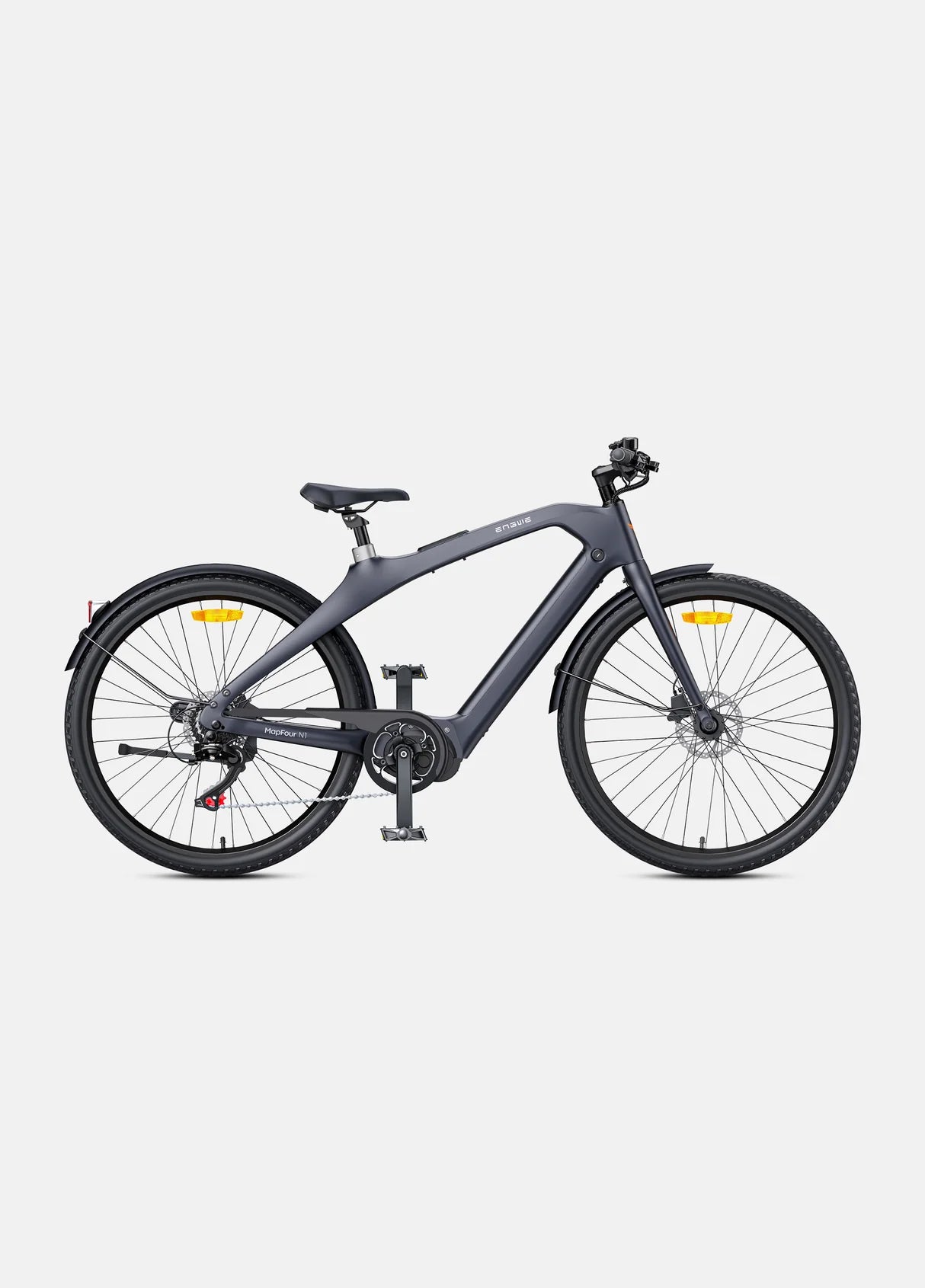

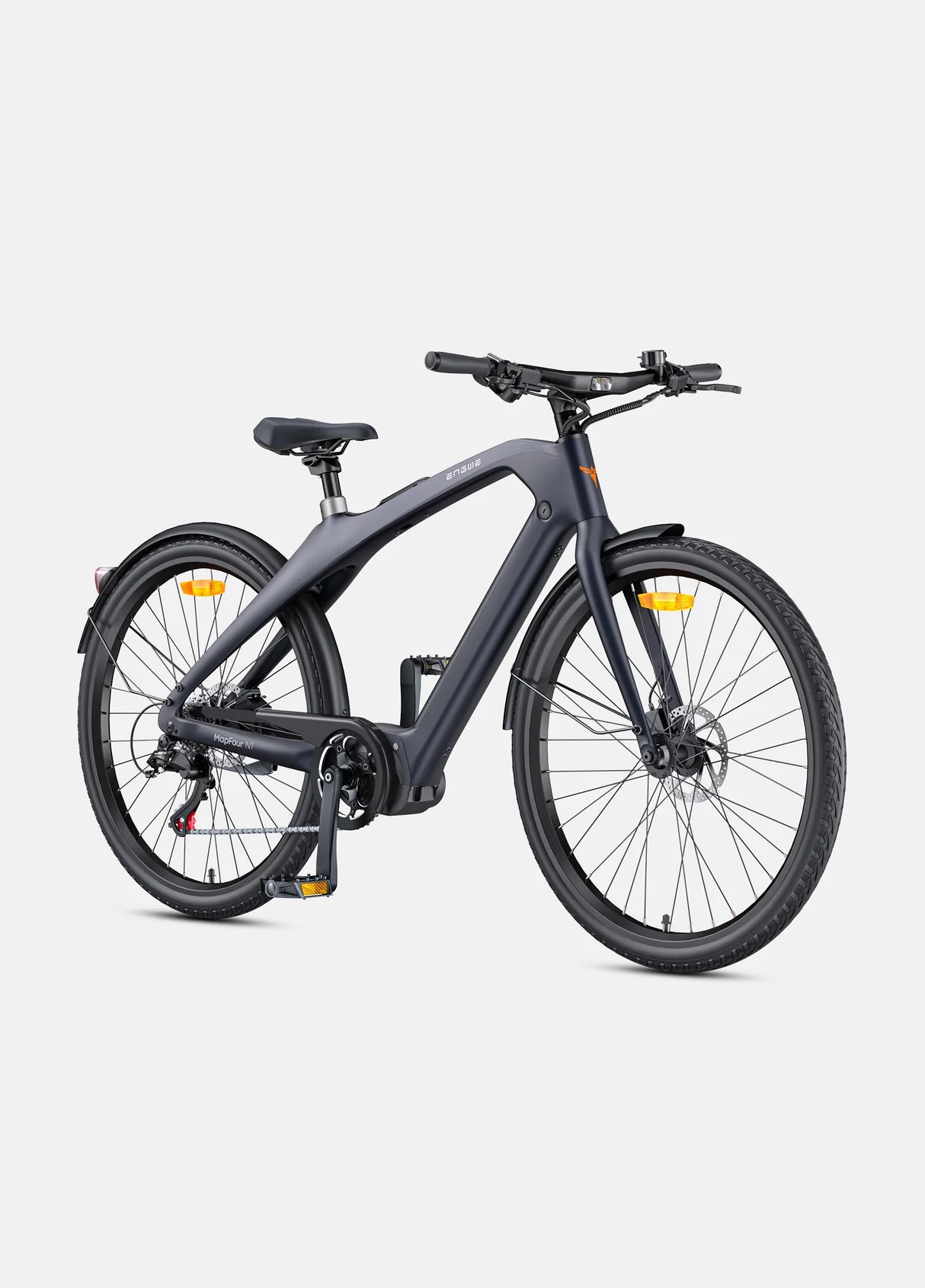

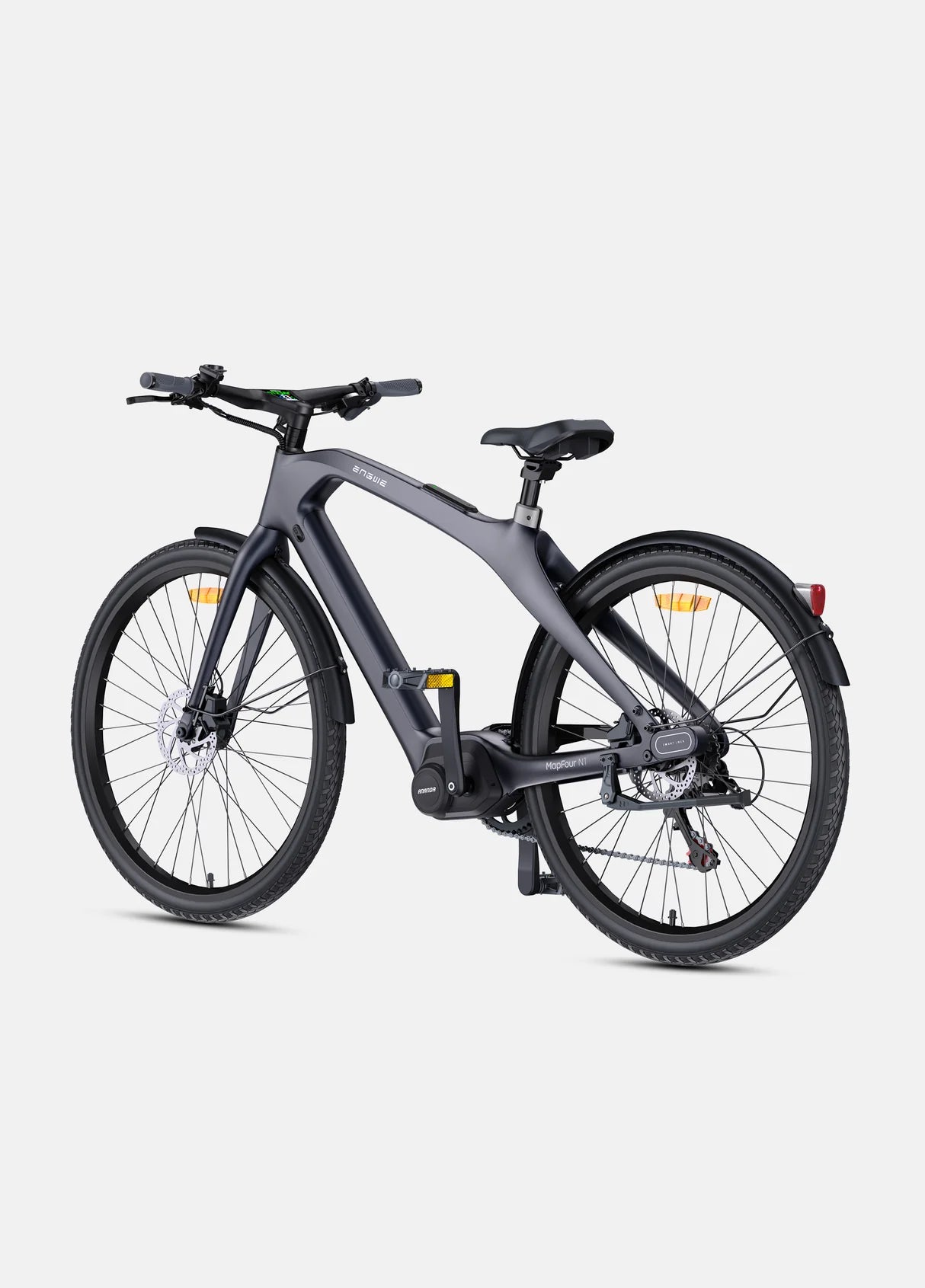

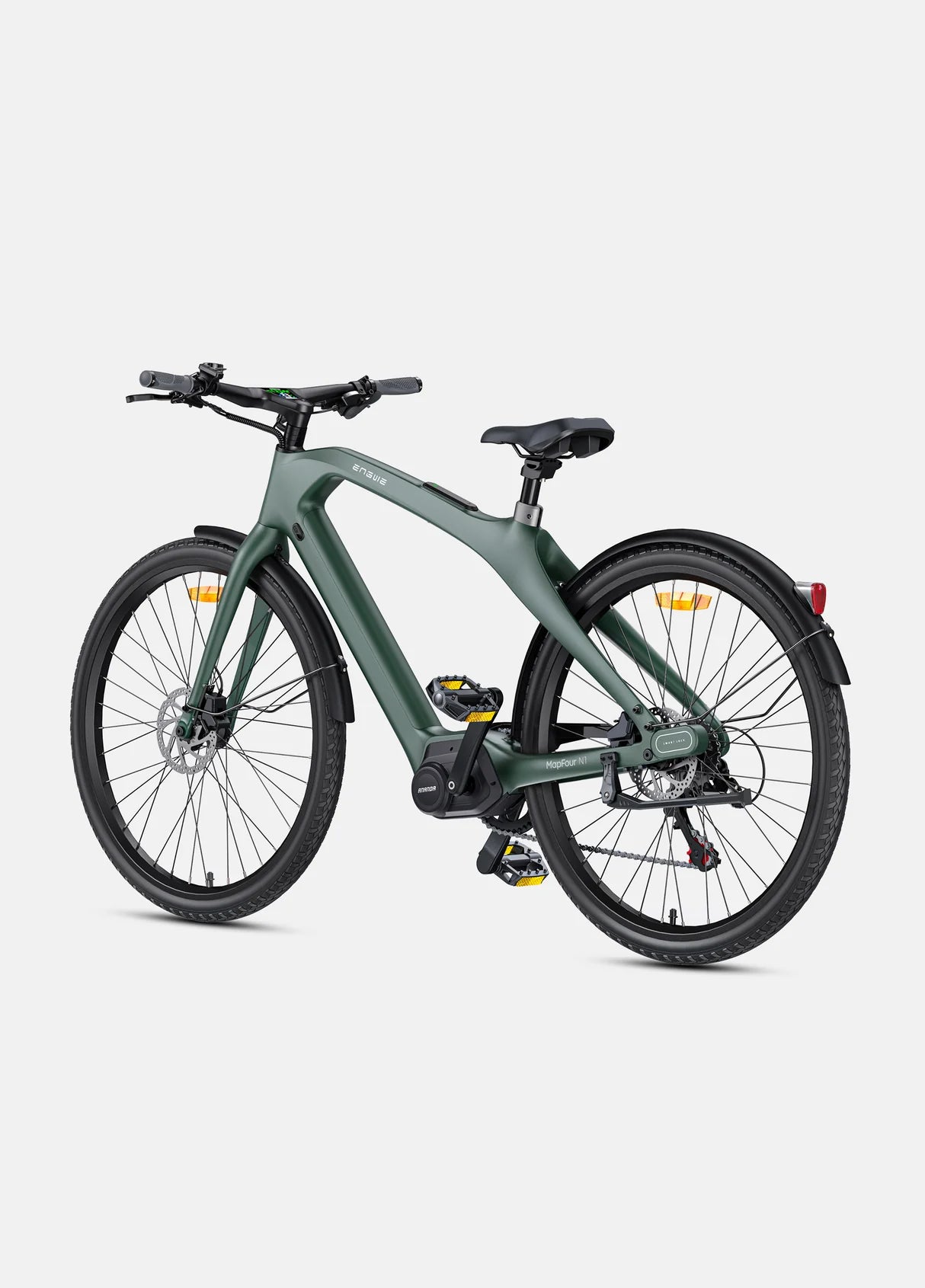

ENGWE MAPFOUR N1 PRO
250W Mid-drive Motor, 80Nm Torque Carbon Fiber City E-bike
Couldn't load pickup availability
Specs
- Material: Carbon Fiber
- Motor: 250W Ananda Brushless Mid-drive Motor
- Sensor:
- Torque Sensor: Torque80 N.m
- Tires: 700*42C Spoke Tires
- Lights: Front light & Solar Tail Light
- Transmission System: SHIMANO 7-Speed
- Brakes: 160mm Front & Rear Hydraulic Disc Brakes
- Battery: 36V 10Ah Removable Lithium-ion Battery
- Speed: 25 km/h
- Mileage: 100 km (PAS 1 level)
- Charging Time: About 1.5-2H (The charging time of the battery depends on the usage of the battery.)
- Maximum Climbing degree: 10°
- Display: LED Color Display
- Bike Weight 19 kg (41.88 lbs)
- Gross Weight: 28.6 kg (63.05 lbs)
Please note: All stated weight numbers have a +/- 3%-5% tolerance. Bike weight includes the battery but excludes all accessories.
Size
Unfolded
| Rider Height | 5.41(ft)-6.56(ft) |
| Payload Capacity | 120KG (264.5lbs) |
| Package Dimensions (LWH) | 152.4*22.5*73CM |
| A--Wheelbase | 116.8 cm |
| B--Total Length | 189.5 cm |
| C --Reach | 49.6 cm |
| D--Standover Height | 78.5 cm |
| E--Min Saddle Height | 87.6 cm |
| F--Max Saddle Height | 93.5 cm |
| G--Handlebar Height | 99.5 cm |
Please note: There may be a difference of 0~5 CM between measured and actual data.
What's in the Box?
- N1 Pro E-bike *1
- Battery 36V 10Ah Lithium-Ion *1
- 48V 8Ah Battery Charger *1
- Pedals *2
- Front & Rear Fenders *1
- Bike Kickstand *1
- Assembly Tools *1
- User Manual *1
Please note: The product you receive is based on the option you selected to order.
Faq
1. Order processing times:
In Stock: Upon receiving your order confirmation email, we will begin processing your order within 2 business days, and your shipment will be dispatched on the third business day.
Pre-Sale: For pre-order items, please check the product page for specific shipping timelines.
Out of Stock: For out-of-stock items, please refer to the product page for detailed shipping information.
Your order will be shipped from the warehouse closest to your address, with an estimated delivery time of 2 to 10 days.
For more details on delivery locations and costs, please refer to our Shipping Policy.
*Please note: Delivery may not be available to remote areas or islands. For special requests or urgent delivery needs, please contact our customer service team, and we will do our best to accommodate you.
2. ENGWE Mapfour N1 Pro User Manual
Please click here to view Mapfour N1 Pro User Manual.
(You can find the instructions in additional languages by click here.)
4. ENGWE APP Manual
Please click here to view ENGWE APP User Manual.
Please click here to view the ENGWE APP video tutorial.
5. How to assemble N1 Pro e-bike:
Please click here to view the instructional bike assembly video for the N1 Pro.
